SKU:

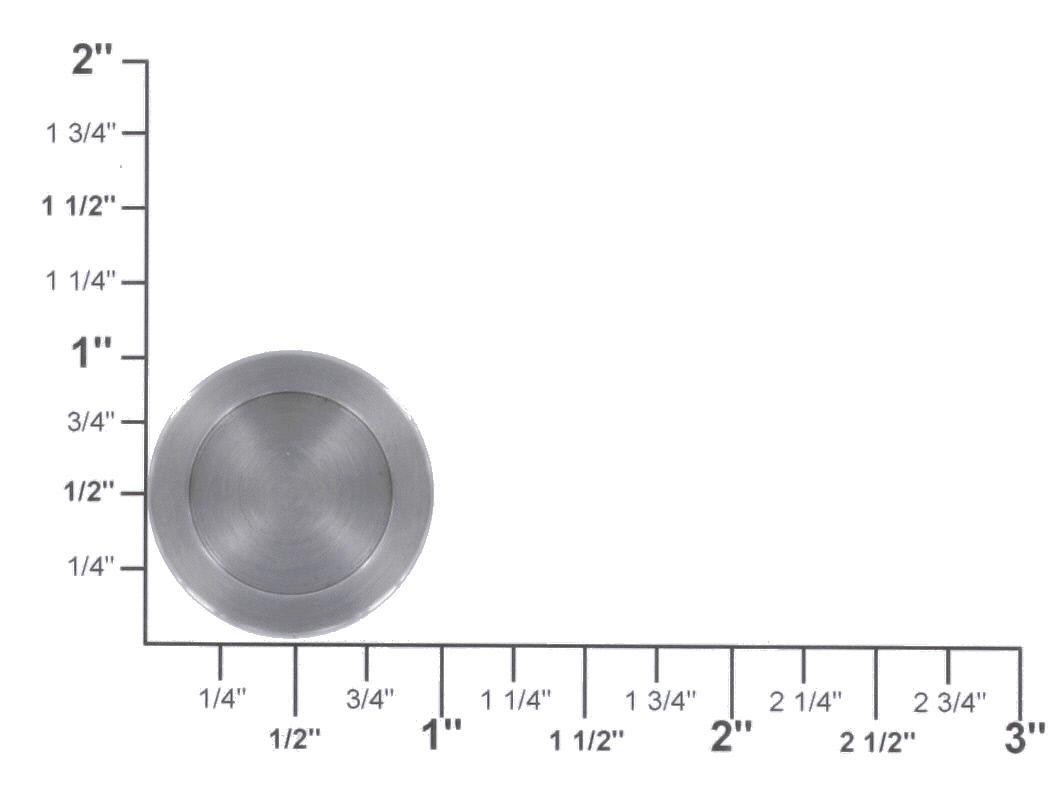

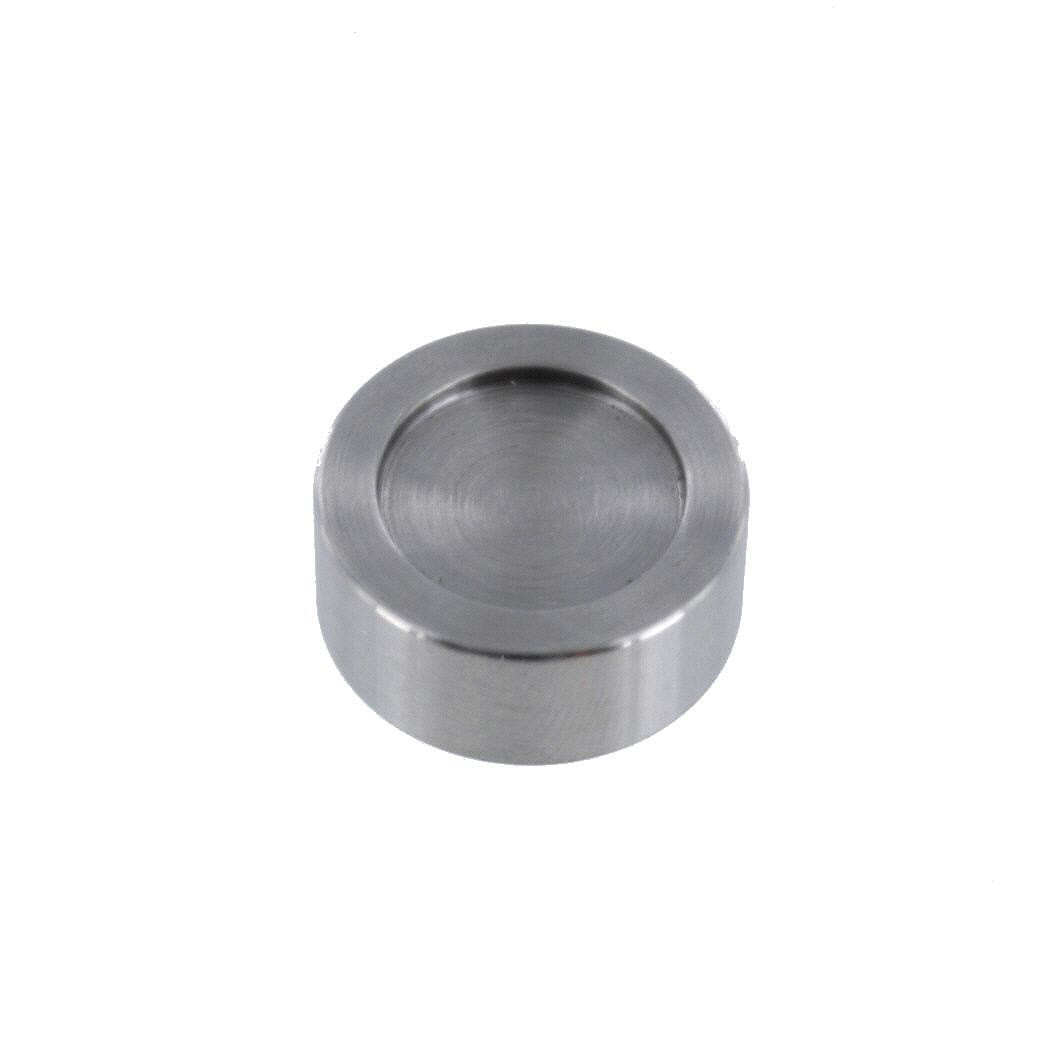

BG Snap Setter Anvil. Used with BG Snap Setter Sticks
Can also be used with rivets.
| Choosing the Correct Rivet Size (you want 2-3mm of post to come through the material) |
|||||
|---|---|---|---|---|---|
| Material Thickness | Recommended | ||||
| Leather oz. | mm | Inches | Rivet Post | Cap Diameter | Rivet Item # |
| < 7 oz | 2.6 mm | 1/10" | 5.6 mm | 4.7 mm | RV4756 |
| 8 oz | 3.4 mm | 1/8" | 6.4 mm | 6.0 mm | RV664 |
| 12 oz | 4.9 mm | 3/16" | 7.9 mm | 4.7 mm | RV478 |
| 7.9 mm | 6.0 mm | or RV679 | |||
| 7.9 mm | 7.0 mm | or RV779 | |||
| 7.9 mm | 9.2 mm | or RV9279 | |||
| 16 oz | 6.0 mm | 7/32" | 9.0 mm | 7.0 mm | RV79 |
| 16-20 oz | 6.5 mm | 9/32" | 9.5 mm | 9.2 mm | or RV9295 |
| 9.5 mm | 11.0 mm | or RV1195 | |||
| 24 oz | 9.7 mm | 3/8" | 12.7 mm | 9.2 mm | RV92127 |
| 12.7 mm | 11.0 mm | or RV11127 | |||
| 30 oz | 12.0 mm | 15/32" | 15.0 mm | 11.0 mm | RV11115 |
