B1615/C6323 Antique Brass, Foot, Solid Brass-LL ***Requires the back post B1414/C6330, sold separately***

SKU:

B1615/C6323-DOEB
Weight:
0.006 LBS
$0.88 - $0.98

Bulk Ordering Chart

  • Quantity Discount Unit Price
  • 1 - 9 0% off -
  • 10 - 99 15% off -
  • 100 - 499 25% off -
  • 500 + 35% off -
NOTIFY ME WHEN AVAILABLE

Free Shipping on orders over $100

Some Restrictions

Antique Brass, Foot, Solid Brass

Solid brass bag feet available in compression fit or screw fit styles (back posts sold separately).

Style #:

  • B1615 - Compression fit
  • C6323 - Screw fit

Finish: Antique Brass

Back Posts Required: (sold separately)

Compression Fit vs Screw Fit

  • Compression fit:
    • Recommended choice for long term security. They will never come off! Whereas screws over time can loosen and fall off.
    • The B1414 back post for compression fit also has a smooth back side.
    • Compression fit pieces use a straight back post sold separately, they are not screw on. They are installed with force from a hammer. We sell hand tools if desired (see links below), but these can also be installed by placing a firm material such as wood on top of the foot/stuff and then hit with a hammer from above.
  • Screw fit:
    • Only requires a Philips head screw driver for installation
    • You have the ability to remove the piece if needed.
    • If you are installing permanently we recommend applying a small amount of Lock-Tite to the threads to avoid the screw coming loose. We provide Lock-Tite sold separately.

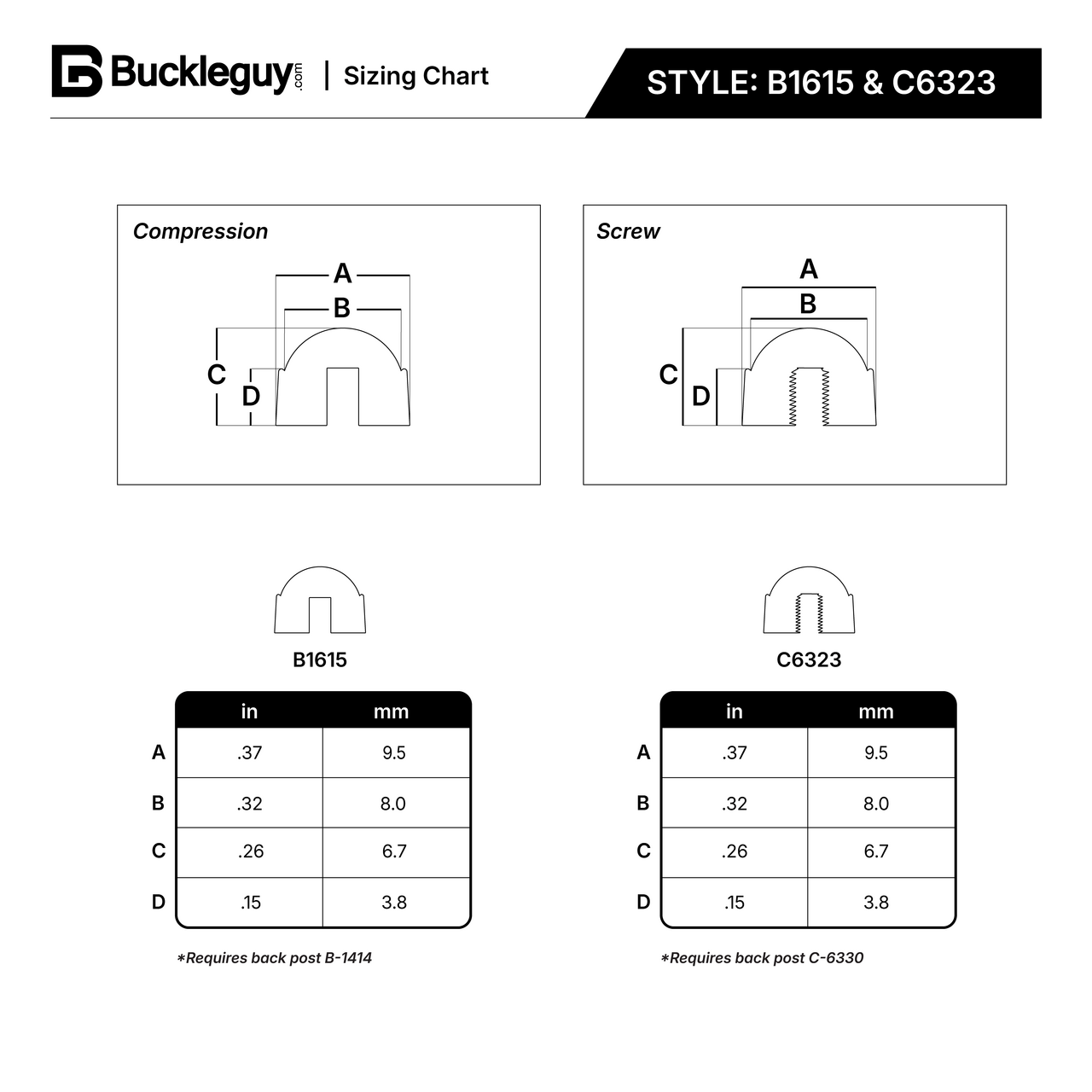

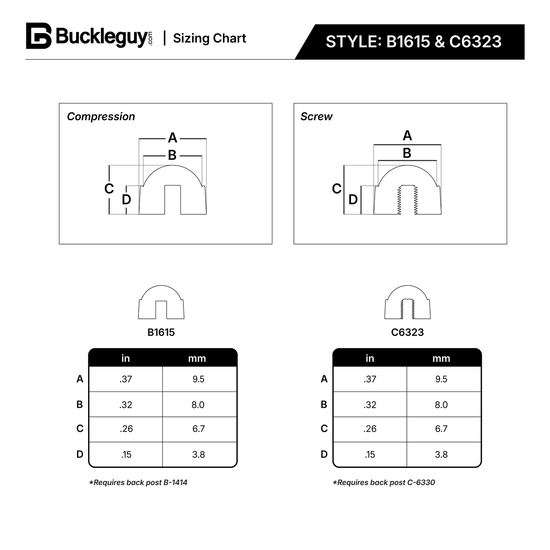

Specs (B1615/C6323):

    • Diameter: 9.5mm or .37"
    • Height: 6.7mm or .26"

Setter for Compression Fit Style (B1615)



Choosing Back Post B1414/C6330
(you want ~3mm of post to come through material)
Material Thickness B1414/C6330
Recommended
Leather oz. mm Inches Inches (mm)
< 4oz < 1.6 mm < 1/16" & under 3/16" (4.8 mm)
4oz 1.6 mm 1/16" & up 9/32" (7.1 mm)
8oz 3.2 mm 2/16" & up 5/16" (7.9 mm)
12oz 4.8 mm 3/16" & up 3/8" (9.5 mm)
16oz 6.4 mm 4/16" & up 7/16" (11.1 mm)
20oz 8 mm 5/16" & up 1/2" (12.7 mm)
24oz 9.6 mm 6/16" & up 9/16" (14.3 mm)



Material: Solid Brass-LL

  • LL = Low Lead Brass under 90ppm
  • Meets California PROP 65 and European REACH Standards
