BG RT8204 Tubular Rivet Setter Anvil ***Requires BG RT8203 Setter Die with Screw***

SKU:

TLRT8204
Weight:
0.087 LBS
$14.33

Free Shipping on orders over $100

Some Restrictions

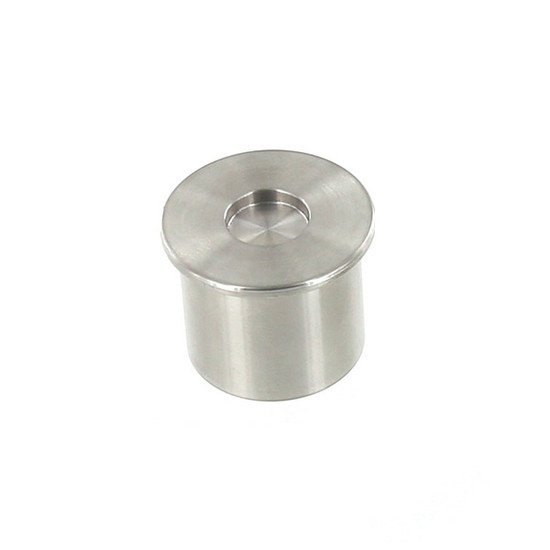

BG Rivet Setter Anvil for RT8204 Tubular Rivet Caps

This anvil die must be used with the post setter die RT8203:

You will also need a hand tool post & base or BG hand press sold separately:

Used with our Tubular Rivets:

Die Size Specifications (Attachment Type). Image chart also above:

  • BG Standard (Fits BG tools and machines)
    • Diameter of upper die (threaded): 7.9mm (1.411mm thread pitch)
    • Diameter of bottom die (not threaded): 18.9mm
  • West Coast (Does not fit BG tools. But is used on most non-BG tools)
    • Diameter of upper die (not threaded): 9.5mm
    • Diameter of bottom die (not threaded): 9.5mm

Material: Stainless Steel
