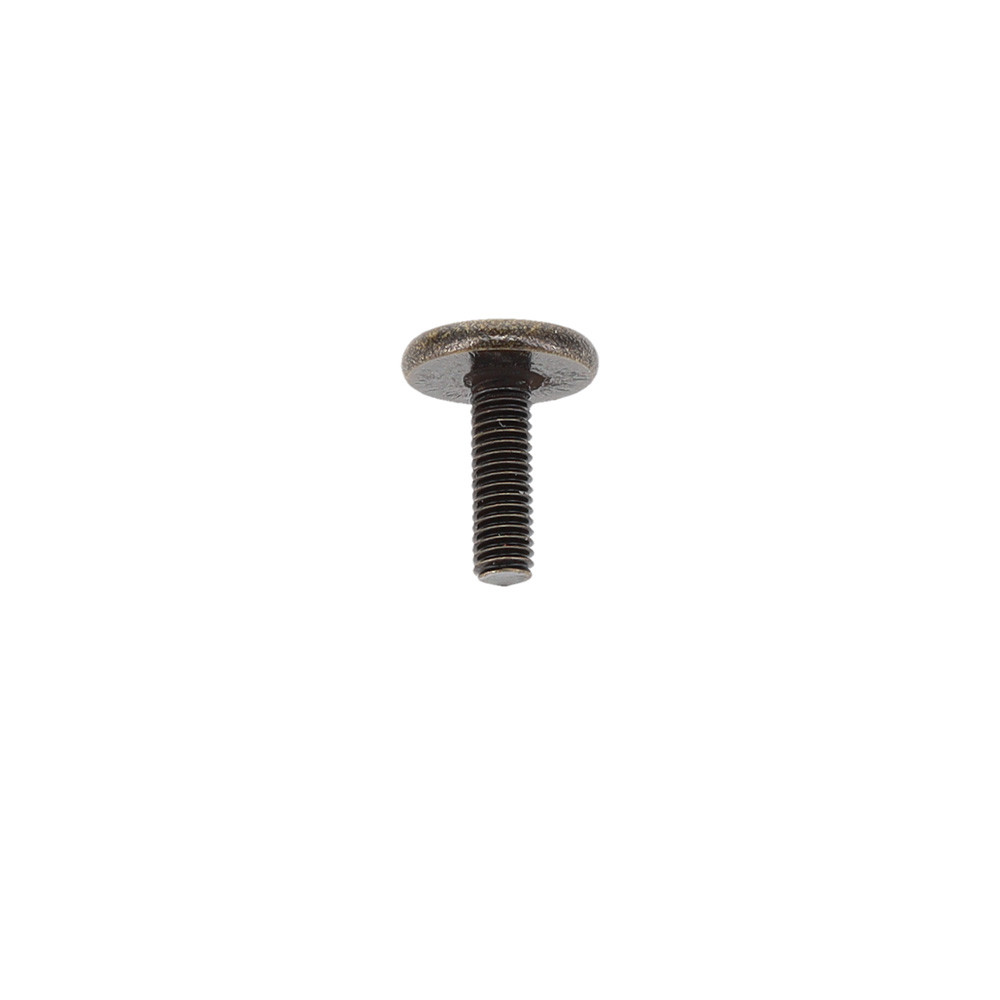

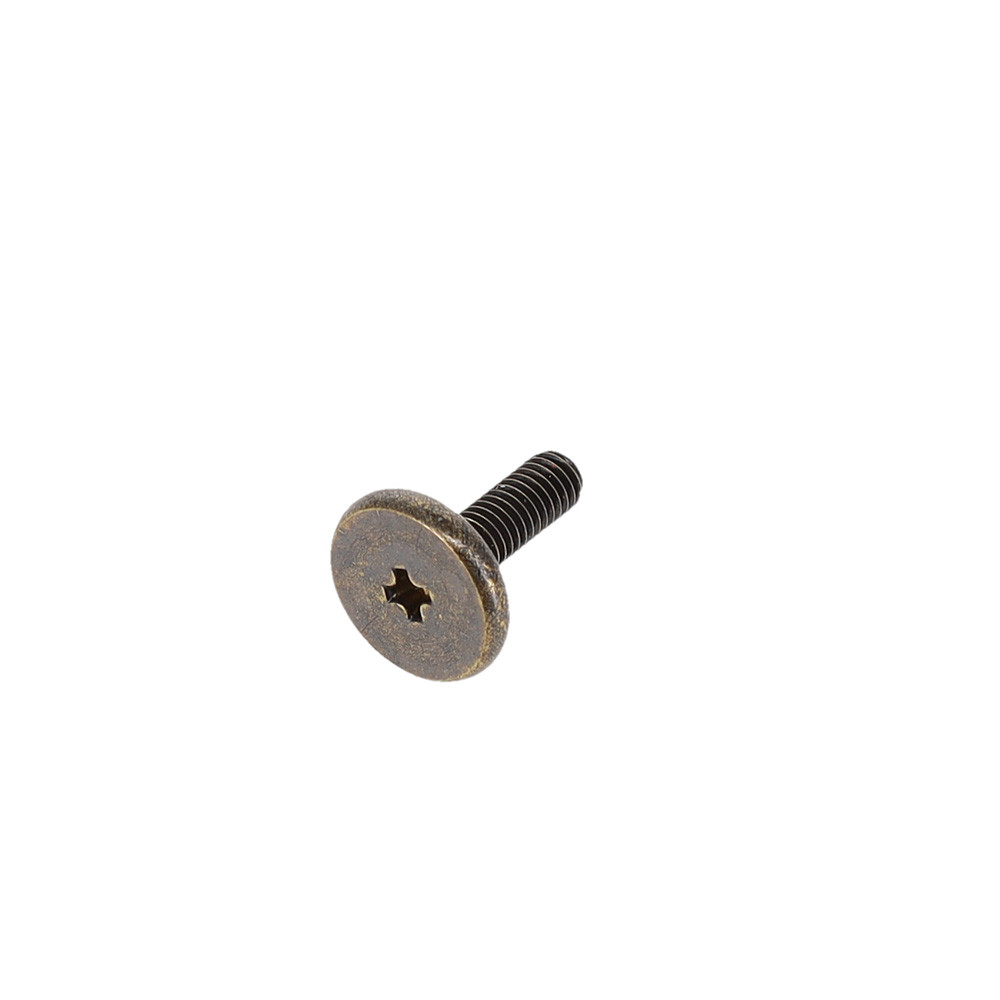

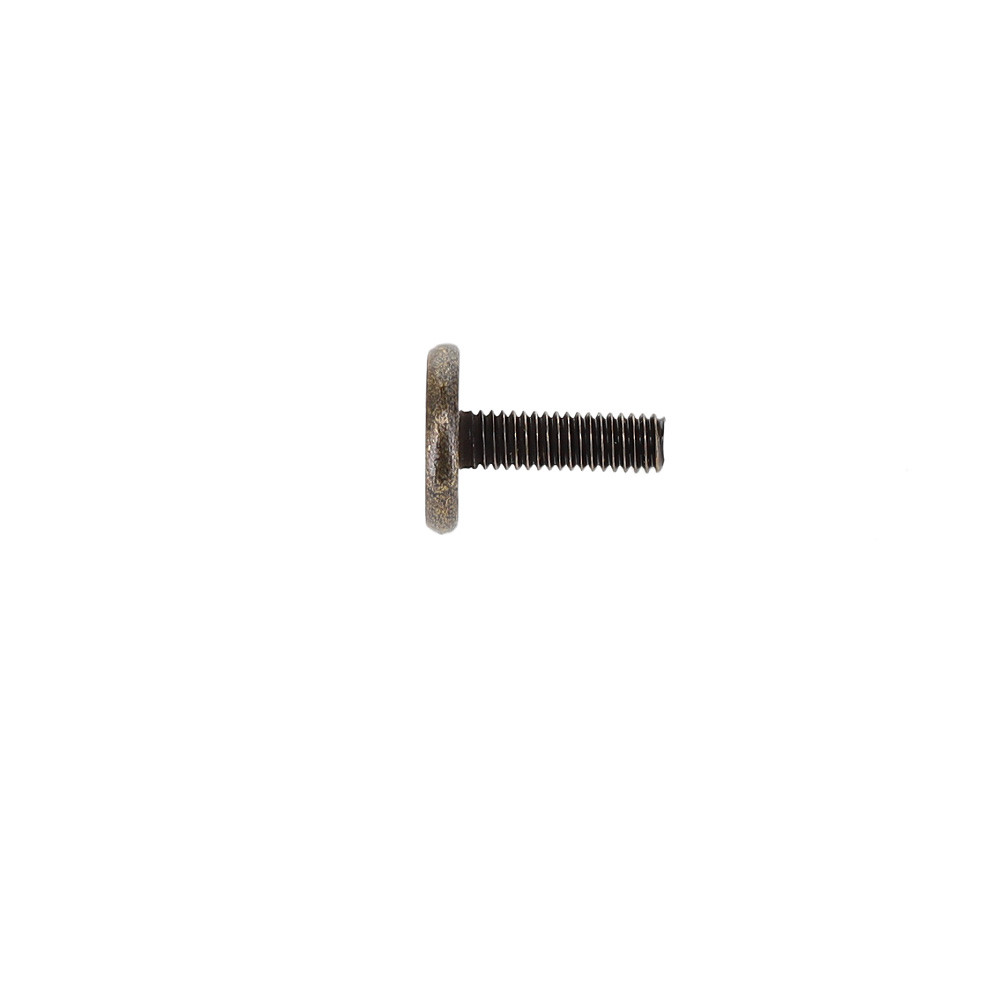

C6330 Antique Brass, Back Post, Solid Brass-LL

Antique Brass, Back Post, Solid Brass-LL, Screw Fit

The C6330 back posts are used on on feet and studs. These are 'screw-fit' meaning they can be screwed together. For "compression fit" back posts instead, search 'B1414'.

Style #: C6330

Finish: Antique Brass

Post Length Sizes:

• 3/16"
• 9/32"
• 5/16"
• 3/8"

Material: Solid Brass

Measurements for all post lengths:

• Post Diameter approx.: 2.7mm
• Head Diameter approx.: 8.9mm

Tools we Recommend

• Requires a Phillips head screw driver for installation
• Hole Punch: C.S. Osbourne 245 2 Belt Punch - 1/8"

How to Choose the Correct Back Post C6330

We recommend 3/16" (4.6mm) of post to come through the other side of material, and a minimum of 1/8 inch (3mm). For example: If the thickness of the material you will be attaching the post to is 1/8” thick, then we recommend the C-6330  5/16". (minimum required to go in the hole 3/16" plus thickness of material 1/8"(2/16") = 5/16"). Please remember to take into consideration the material being used. Some material will be very firm like wood and will remain the same thickness when the item is attached. Other materials like leather or foam will compress once it is assembled. You should be using the compressed material “thickness” to determine the size of the C6330 you will need.
