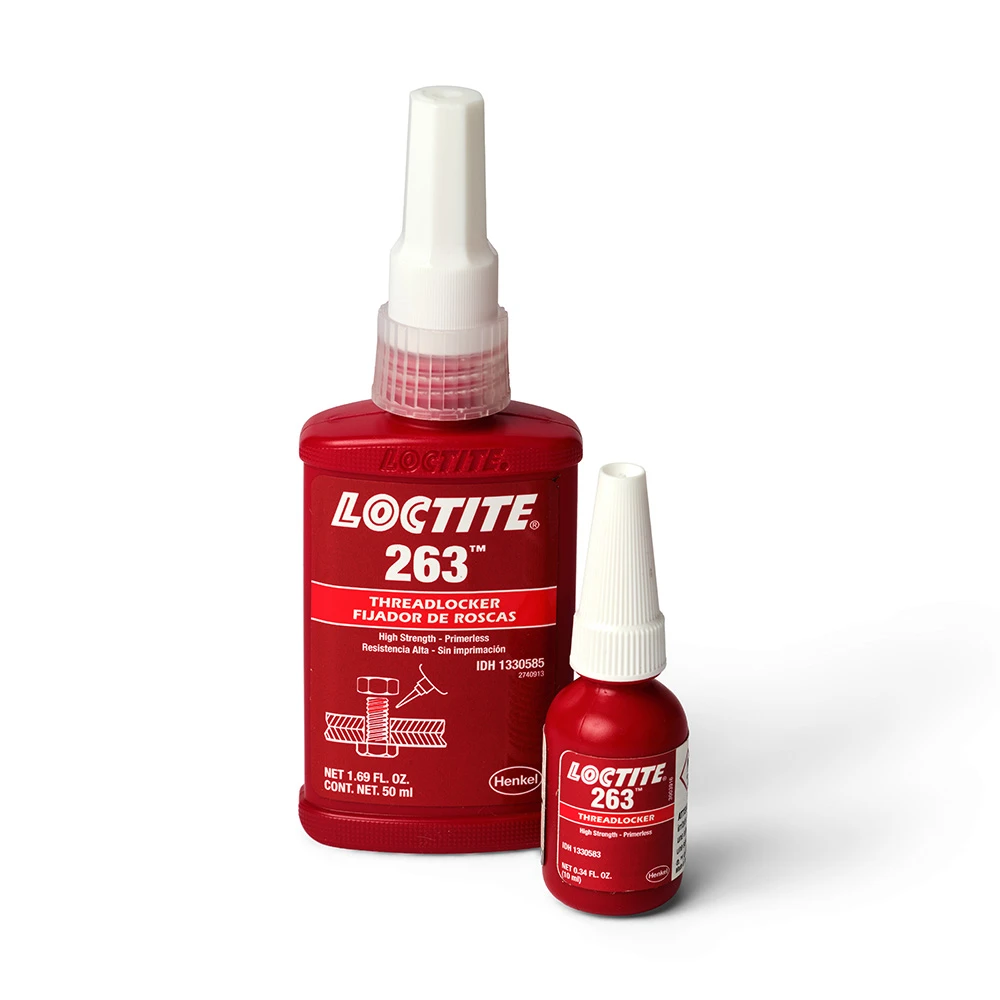

Loctite®, Threadlocker 263, High Strength

Loctite® 263 High-Strength Threadlocker

Loctite 263 is a high-strength, primerless liquid threadlocker designed for permanently locking and sealing metal threaded fasteners. It helps prevent loosening and leakage caused by shock and vibration.

The anaerobic formula cures when confined between close-fitting metal surfaces in the absence of air. Loctite 263 works on active and passive metals, including steel, stainless steel, aluminum, and plated surfaces. It also tolerates minor contamination from thread lubricants, anticorrosion fluids, and protective fluids.

Loctite 263 is designed for heavy-duty applications requiring high strength. It can be used on metal fasteners up to 1" in diameter. Heat is required for disassembly.

Sizes:

• 10 ml
• 50 ml

Specs:

• Strength: High strength, permanent bond
• Physical Form: Liquid
• Technology: Acrylate
• Cure Type: Anaerobic
• Fixture Time: 10 minutes
• Full Cure Time: 24 hours
• Service Temperature Range: -65°F to 360°F
• Maximum Fastener Size: Up to 1" in diameter
• Removal: Heat required
• Primer Required: No
• Oil Tolerant: Yes

Recommended Materials:

• Brass
• Steel
• Aluminum
• Zinc
• Iron
• Plated metal surfaces
• Other active and passive metals

Application Instructions:

• Prepare: Clean threaded parts before application. Loctite 263 tolerates minor surface contamination, but heavily contaminated parts should be cleaned.

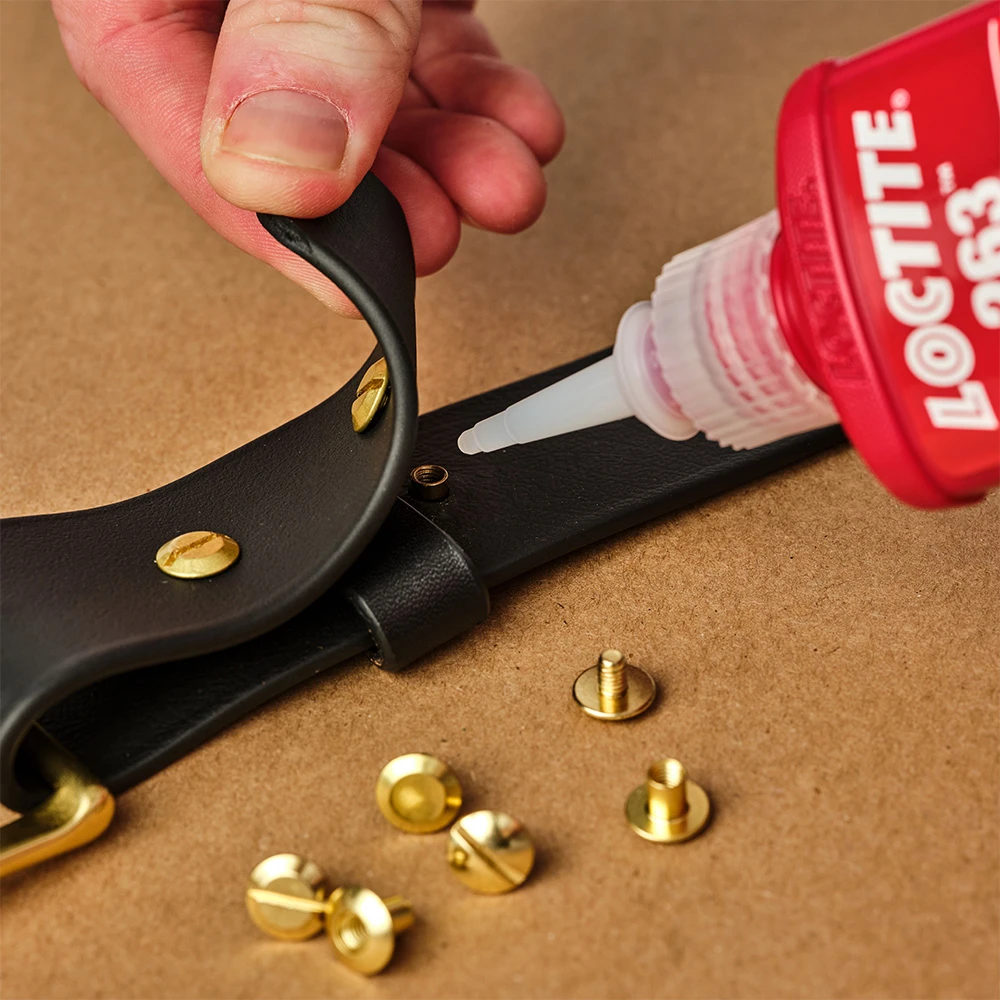

• Apply: Apply the threadlocker to the threaded engagement area.
• Assemble: Assemble and tighten the fastener as required.
• Cure: Allow the product to cure. Typical fixture time is 10 minutes, and full cure is reached in 24 hours.

Fixture and cure times can vary based on the substrate, temperature, bond gap, and use of an activator.

Disassembly:

Apply localized heat to the nut or stud and disassemble while hot.

Safety and Handling:

Read and follow the product label and current Safety Data Sheet before use.

Safety Data Sheet (SDS) available upon request.

Threadlockers vs. Superglues

Loctite 263 is an anaerobic threadlocker designed for metal threaded fasteners. It cures between close-fitting metal surfaces in the absence of air. Superglues use a different adhesive technology and are intended for bonding surfaces rather than locking threaded metal fasteners.

Loctite / Henkel

Loctite is an adhesive, sealant, and surface-treatment brand of Henkel. Henkel was founded in 1876 and is headquartered in Düsseldorf, Germany.
