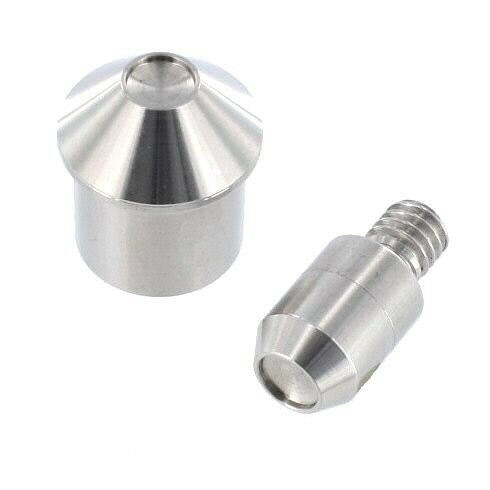

BG Rivet Setter Die, Multiple Sizes ***Requires hand tool post & base or BG hand press ***

SKU:

TLRHP
Weight:
0.162 LBS
$25.48

Free Shipping on orders over $100

Some Restrictions

Buckleguy Rivet Setter Dies

***Requires hand tool post & base or BG hand press sold separately***

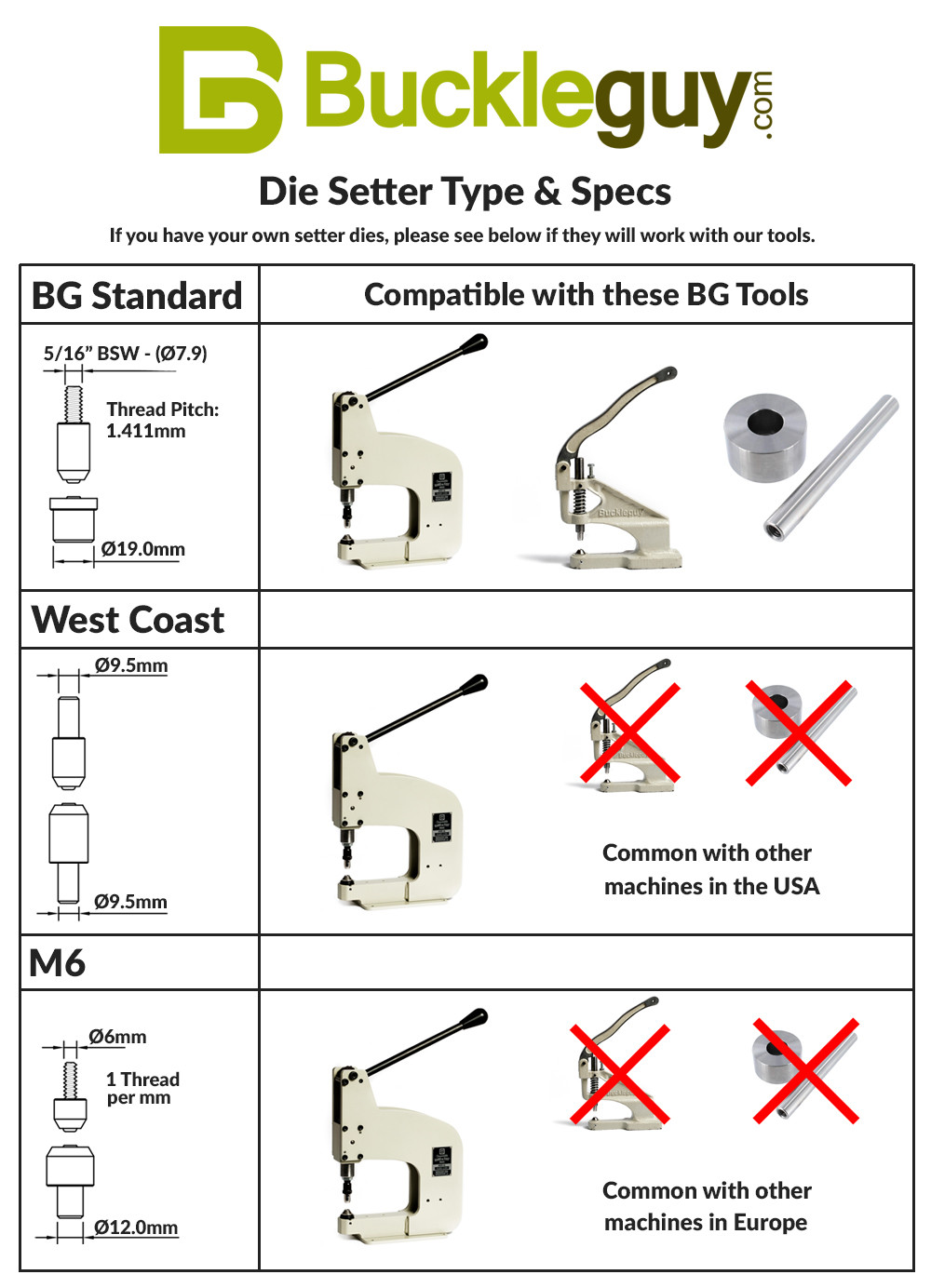

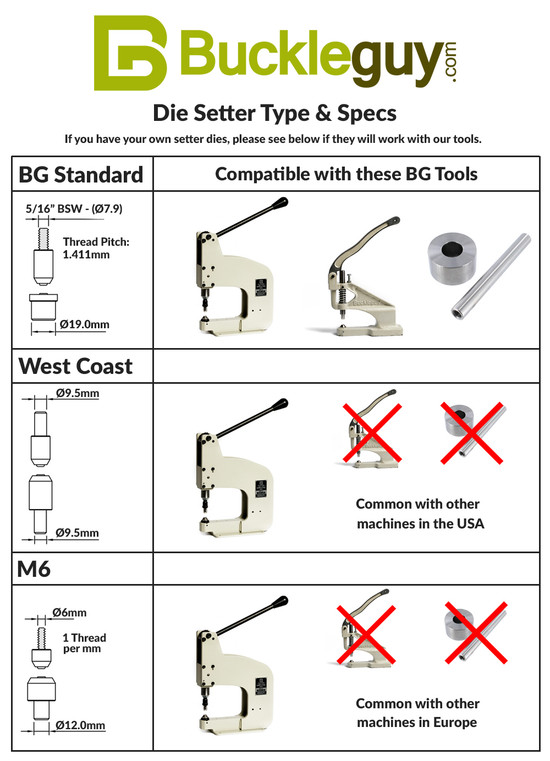

Die Size Specifications (Attachment Type). Image chart also above:

  • BG Standard (Fits BG tools and machines)
    • Diameter of upper die (threaded): 7.9mm (1.411mm thread pitch)
    • Diameter of bottom die (not threaded): 18.9mm
  • West Coast (Does not fit BG tools. But is used on most non-BG tools)
    • Diameter of upper die (not threaded): 9.5mm
    • Diameter of bottom die (not threaded): 9.5mm

Custom fit to the following rivets:

Suggested Hole Punch:

  • 4.7mm & 6mm Cap Rivets: 3/32" hole punch
  • 7mm, 9mm & 11mm Cap Rivets: 1/8" hole punch
  • Click here for: Rotary Hole Punches
    • We recommend a rotary punch as you have 6 punch sizes in one tool. And different rivet sizes require different holes sizes, so a rotary punch is quite versatile.

Material: Stainless Steel
